ARC Welder 135A Stick Welding Machine TL-135S TOOLIOM

ARC Welder 135A Stick Welding Machine TL-135S TOOLIOM

$69.99
$99.99 $69.99
Sale Sold out
Shipping calculated at checkout.

SPECIFICATION

· Input Voltage: 110(120)V / 220(230)V

· Input Current: 25.5A(110V) / 17.8A(220V)

· Rated Duty Cycle:60%

· Protection Class:IP21S

· Insulation Class:F

· Output Voltage: 25.4V

· Output Current: 135A

· Net Weight: 4.84LB (2.2KG)

HIGHLIGHT FEATURES

1. Can handle E6010 cellulose electrode, adopting IGBT Inverter power system,suitable for mild steel, cast iron, stainless steel as well as hard surfacing.

2. Equipped with digital display and trouble indicate,read the output welding current.

3. Built-in excellent anti-stick, arc force, hot start and other functions,easy to operate,safe and convenient for beginner.

4. Portable: With adjustable shoulder strap,is convenient to carry between job sites or use.

5. Dual voltage input design: Support 110V & 220V input voltage

Free return and replace within 30 days. We make sure you have enough time to explore the machine.

The average shipping time is 5 days.

We have warehouses located in southern California and northern Kentucky to manage all shipping and returns.

We cover all quality-related issues in two years and provide lifetime technical support for other problems

For orders made on Tooliom website only.

support@tooliom.com

View full details

ARC TL-135S

· Can handle E6010 cellulose electrode

· Built in hot start, anti-· stick,dig-arc force

· Portable design,mini size,easy to carry

· Support 110V & 220V input voltage

· Suitable for lift TIG (torch is not included)

· 60% duty cycle, high efficient welding

· Robust thrust, deep melton pool, and less splatter

· Lift TIG is optional(need buy extra tig lift torch,not included

Product Manual Download

  • Hot Start

    · Start arc easy and fast.High quality arc starting,reduce the probability of initial defects in the arc.

  • Dig-Arc force

    · Smoth arc on celloluse,make welding electrode welding smooth, not easy to break.

  • Anti-Stick

    · Safe and convenient for beginner,avoid sticking electrodes on work plate, affecting the quality and efficiency of welding
  • MIG/Stick/TIG Multi-Process Welder TL-135M 3 in 1 IGBT DC Inverter-4

    Handle cellulose electrode

    · E601: Locate the ground clamp with cable and connect the plug on the cable end to the Positive Connector (+) on the welder.(DCEN)

    · E6011/6013/ 7018: Locate the ground clamp with cable and connect the plug on the cable end to the Negative Connector (–) on the welder.(DCEP)

  • Compact / Light-Weight / Portable

    · This stick welder come with adjustable shoulder strap,easy for translation and storage.

  • Package Included

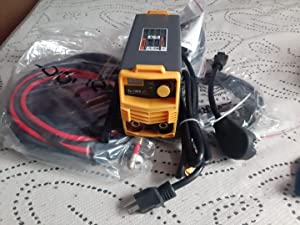

    · 1 x MMA Welder
    · 1 x Electrode Holder & 10 feet Cable
    · 1 x Ground Clamp & 10 feet Cable
    · 1 x Power Adapter
    · 1 x User Manual

You May Also Like
4.9
76 reviews
5
 67
4
 9
3
 0
2
 0
1
 0

Customer Photos

  • featured image
  • featured image
  • featured image
  • featured image
  • featured image
Showing 1 - 10 of 76 reviews
s
Sarai Lindgren
Verified Purchase

Brock the first time I used it

It brock the first time I used it

  • Is this helpful?
v
Vivien Shanahan
Verified Purchase

Portable and easy to use

This thing just works. It's portable, easy to use and a great value.

  • Is this helpful?
a
Augustina Ayisat
Verified Purchase

Happy customer

Repair work

  • Is this helpful?
Olaide Obianuju Olaide Obianuju
Verified Purchase

Unbelievable. Awesome

This welder is just plain unbelievable. But it works great. Two pieces of quarter inch plate. No problem

  • Is this helpful?
Regan Nuwagaba Regan Nuwagaba
Verified Purchase

Exceeded my highest expectations

So far it has been exactly what I was looking for out of a welder. You couldn't ask for a better beginner welder. I haven't had a chance to use the 220 input yet, but will update when I get the chance.

  • Is this helpful?
r
Roxanne Visagie
Verified Purchase

Cheap and little

For the lower cost, it does a good job

  • Is this helpful?
k
Kenton Kertzmann
Verified Purchase

Muy potente

Cumple con su trabajo

  • Is this helpful?
l
Lenora Armstrong
Verified Purchase

Bad to the bone

Tiny package but very capable.

  • Is this helpful?
s
Siddharth Dubey
Verified Purchase

Great unit

Very cheap welder, but insane quality. I'm 15 I own a big champion elite welding machine, it's gasoline so I can't run it inside my barn because of the carbon monoxide, so I just got this little thing and it woks great, it welds 6013 3/32 rod really good at 40 amps, and welds 7018 1/8 rod very good at 70 to 90 amps, I have been welding with 6011 1/8 and it welds it very good at 110 amps super minty unit, for $70 it's a killer deal, and fun to just mess around with.

  • Is this helpful?
d
Della Ebert
Verified Purchase

Very impressed.

Note: All examples were done using 220 volts.UPS brought this little guy to my house today. After unboxing, first thing I did was check the DC open voltage with a multimeter. Unit checked out 80 v. much better than stated voltage of 65v. I turned the amps all the way up and it read 138 amps. I hooked the unit up at little welding station I have down in the barn. I used electrode and grounding cables from another welder (these cables are heavier that what came with the unit). Time to weld. I first used Forney E7018AC 3/32. Amps set at 80. Struck an arc and keep it lit on first try. Welded like butter. Very impressed. Next I tried 6010 3/32 on DCEP (electrode on positive) 80 amps. Too cold. Gradually cranked it up to 100 amps before I could keep the arc lit and weld. I then reversed cable polarity. Arc popped and cracked and sounded almost scary. I turned the amps down to 60 amps and was able to weld but keeping the arc lit was a challenge. Lastly, I tried Forney E7018 1/8. I had to max out the amps before I could weld.Conclusion: Runs 7018AC 3/32 like a dream. Runs 6010 3/32 kind of sort of if ground clamp is on pos and electrode is on neg (DCPN). I can make it work but not a lot of fun. I did not try 6013 or 6011 but I think it should run those rods up to 1/8 without much problem. It will weld 7018 1/8 but that is max it can do. I am not disappointed with my purchase.Day 3 up date. I have been welding with 6011 and 6013 both 3/32 in and 1/8 in rods. This little guy runs those rods great. Runs 6013 so easy I think I could train my dog to weld with it. Great Buy !!!!!!

  • Is this helpful?
