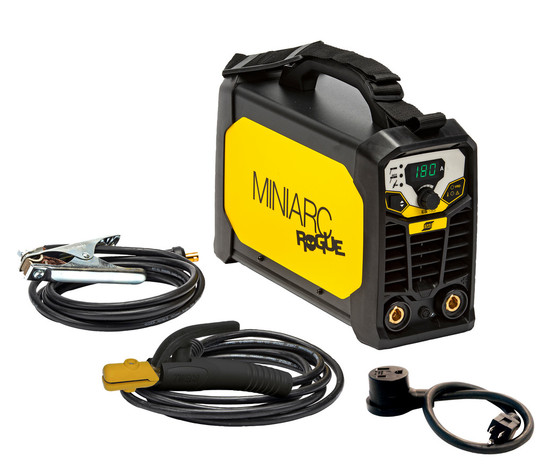

Miniarc Rogue ES 180i
The Miniarc Rogue is a robust and durable power source
for the professional welder. The machine provides state-of-the-art
welding performance and reliability through use of the latest high
performance power electronics and Digital control; ensuring a precise
consistent arc.
The Miniarc Rogue provides a smooth DC (Direct Current) welding power
which allows you to weld a variety of metals, such as alloyed and non
alloyed steel, stainless steel, and cast iron. The Arc Force and Hot
Start settings are adjustable and help the user find exactly the right
arc for the job. Being digital, the Micro-processor precisely controls
all functions and provides Best-in Class welding performance across the
amperage range of the machine. The Miniarc Rogue can be used with
electrodes up to 5/32 in. (4.0 mm).
The Miniarc Rogue can easily perform TIG -welding using a “Lift TIG”
start. Equip the power source with the optional TIG-Torch, which has a
built-in gas valve and a regulator, and a bottle of gas and you are
ready to weld mild steel or stainless steel, with or without filler
material.
Features
- Dual voltage input supply –flexibility to use any place on single phase plug
- Superior Arc characteristics –smooth and stable performance (including special mode for 60xx)
- Generator Compliant –suitable for use with generators (7 kW recommended)
- Easy to Use –set the welding current and weld with excellent results
- Practical Design –makes the power source easy to carry which enables use at almost any work site
- Robust Design –IP23S designed for fabrication shop or site application
- PFC ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 300 feet
Inquire about the 'Miniarc Rogue ES 180i'
Dimensions
| Height | 10.4 in. (264 mm) |
| Length | 15.7 in. (403 mm) |
| Width | 6 in. (153 mm) |
Input Voltage
| Frequency | 50/60 Hz |
| Phase | 1 |
| Voltage | 120-230 ±15% VAC |
Power Specifications
| Model | ES 180i |
| Current Range(A) | 10-180 A |
| Energy Save Mode | 50 Watt |
| Max Output (A) | 180 A |
| Open Circuit Voltage | 78 V |
| Protection Class | IP23S |
Specifications
| Operating Temp | +14 to +104 °F (-10 to +40 °C) |
| Standards | CSA |
Weight
| Weight | 18.2 lb (8.25 kg) |
Welding Output
| Duty Cycle | 25 % |
| Input Voltage | 230 V |
| Output Current | 180 A |
| Output Voltage | 27.2 V |
| Welding Process | Stick (SMAW) |
| Duty Cycle | 60 % |
| Input Voltage | 230 V |
| Output Current | 116 A |
| Output Voltage | 24.6 V |
| Welding Process | Stick (SMAW) |
| Duty Cycle | 100 % |
| Input Voltage | 230 V |
| Output Current | 90 A |
| Output Voltage | 23.6 V |
| Welding Process | Stick (SMAW) |
| Duty Cycle | 25 % |
| Input Voltage | 120 V |
| Output Current | 110 A |
| Output Voltage | 24.4 V |
| Welding Process | Stick (SMAW) |
| Duty Cycle | 60 % |
| Input Voltage | 120 V |
| Output Current | 65 A |
| Output Voltage | 22.6 V |
| Welding Process | Stick (SMAW) |
| Duty Cycle | 100 % |
| Input Voltage | 120 V |
| Output Current | 50 A |
| Output Voltage | 22.0 V |
| Welding Process | Stick (SMAW) |
| Duty Cycle | 25 % |
| Input Voltage | 230 V |
| Output Current | 180 A |
| Output Voltage | 17.2 V |
| Welding Process | TIG (GTAW) |
| Duty Cycle | 60 % |
| Input Voltage | 230 V |
| Output Current | 116 A |
| Output Voltage | 14.6 V |
| Welding Process | TIG (GTAW) |
| Duty Cycle | 100 % |
| Input Voltage | 230 V |
| Output Current | 90 A |
| Output Voltage | 13.6 V |
| Welding Process | TIG (GTAW) |
| Duty Cycle | 25 % |
| Input Voltage | 120 V |
| Output Current | 140 A |
| Output Voltage | 15.6 V |
| Welding Process | TIG (GTAW) |
| Duty Cycle | 60 % |
| Input Voltage | 120 V |
| Output Current | 81 A |
| Output Voltage | 13.3 V |
| Welding Process | TIG (GTAW) |
| Duty Cycle | 100 % |
| Input Voltage | 120 V |
| Output Current | 63 A |
| Output Voltage | 12.5 V |
| Welding Process | TIG (GTAW) |
Extra Information
* For 115V values please see separate instruction manual.
