MS2109
——————————————————————————————————————————————————————————
MS2109 is a HD Video Acquisition Chip, which is
internally integrated with USB2.0 controller and data transceiver module, HDMI
RX module, Audio and Video Processing module. MS2109 can transmit the Audio and
Video signals by HDMI interface to PC, Smart Phone or Tablet Computer through
USB interface to preview or collect audio and video information. USB video
complies with UVC specification, Audio complies with UAC specification, and
supports Windows / Android / MacOS system.
Features
|
HDMI 1.4b compatible |
USB Audio conforms to UAC1.0 specification |
|
Support DVI1.0 |
USB Audio default 96KHz mono output |
|
Support HDCP 1.4 |
USB Video supports customized resolution output |
|
Support RGB444, YCBCR422, YCBCR444, YCBCR420 color space |
Support digital audio interface I2S input |
|
Support deep color 24/30/36 bit mode |
On-chip high speed USB Device |
|
Support CEA-861 /CEA-861-F video format |
Support descriptor customization |
|
Max input resolution 3840×2160@30Hz |
Windows XP,7,8,10 |
|
Support YUV&JPEG mode |
Andriod5.0 or Higher |
|
Max output resolution: 1920×1080@30Hz |
MacOS |
|
Support user customized resolution |
Only one 24MHz crystal needed |
|
Compatible with USB1.1 mode |
On-chip PLL |
|
Compatible with UVC1.0 protocol |
On-chip power on reset |
|
Support SPDIF output |
QFN48 (7mm× 7mm) |

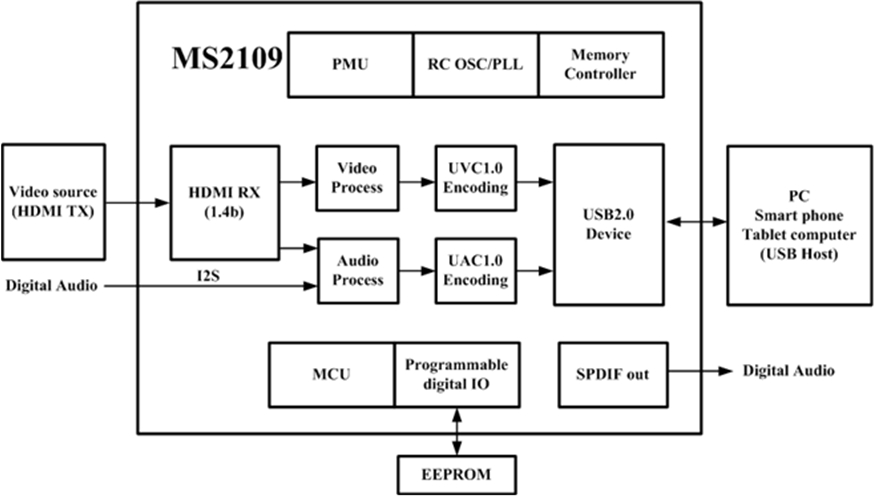

Function Block Diagram
